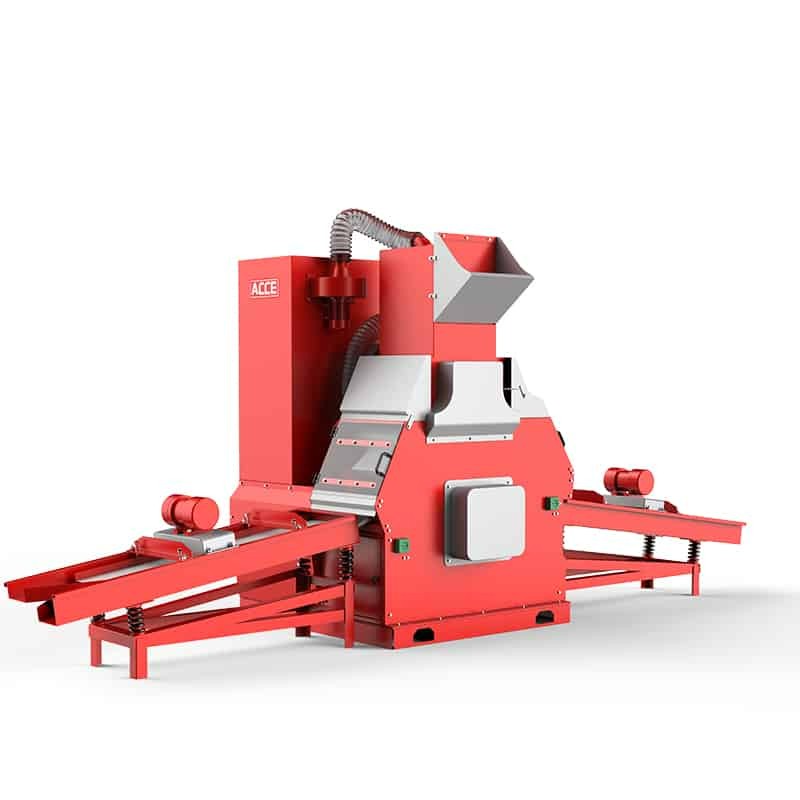

V-S10 copper granulator machine

Copper is a very valuable metal resource that is durable and has excellent conductivity, and recycling can be a profitable endeavor when using our processing equipment!

Are you looking to purchase a new copper wire granulator?
The V-S10 copper granulator machine is specially designed for recovering copper from scrap cable wire. The equipment can process 220-331 lb cable wires per hour. The power supply can be three-phase, which is more suitable for recycling yards.

Includes:
- 18.5kw Granulation crusher
- Air flowing vibration separator
- Dust Collector
- 4.5kw Air system (air blower + air suction)
- Electric carbinet
- 2 Small vibration tables
- 1 Set blades (SKD-11 10pcs rotary blades + 2pcs fixed blades)
- 3 Crusher sieves
- 2 Separators sieves (200mesh+250mesh)
- 3 Small vibrating sieves
- 1 Set tool box
Free replacement parts
One Year warranty

With the V-S10 copper granulator machine, you can cost-effectively separate valuable copper from the insulation jacket. V-S10 can accurately process a variety of waste cables and wires. The recycling rate is up to 99.95%, which is higher than almost any other metal recycling equipment.
The types of scrap it can process include:
● Wire harnesses
● Automotive wires
● Industrial cables
● Household wires
● And more

We Recommend Adding Optional Accessories
- Pre-shredder
- Conveyor belt with magnetic separation device
These accessory allows you to efficiently and accurately process a large number of fine and thick wires at the same time.

V-EB400 Pre-shredder Specifications
● Power: 5.4hp 60hz 3phase
● Dimensions: 1160x600x1450 mm
● Weight: 1102 lb

How Does The Wire Granulator Work?
How does the machine separate metals efficiently and accurately. First, the scrap is crushed into particles, and then the valuable metal components are cleanly separated from plastics or other materials of different weights through an airflow process.
1. The pre-shredder pre-shreds the scrap wires to make the wire size about 1~2 inches.
2. The wire granulator crushes the 1~2 inch wires into smaller uniform granules.
3. Finally, the airflow sorting separates the copper granules and plastic granules according to weight, and guides the copper granules and plastics to different discharge ports.

V-S10 Copper Granulator Machine Specifications
● Dimensions: 2040x1650x2220 mm
● Weight: 2350 lb
● Motor: 23.9 HP
● Processing Capacity: 220-331 lb/h

Unit Conversion Technical Specifications:

Our dedicated team is dedicated to helping you find the perfect solution for your wire recycling needs based on your space, material, budget and logistics requirements.

Contact us to help you recycle more efficiently and make more money for you！
